3-Pipe ECOi EX MF4 Series R32
Extreme efficiency, quality, compact.
The ECOi EX Series with R32 refrigerant now includes simultaneous heating and cooling VRF, expanding the range to minimise the environmental impact of VRF systems for decarbonised buildings.
High seasonal efficiency.
Space-saving solution.
Capacity range.
Wide operation range.
Flexible piping.
Improve IAQ 24/7.
Remote monitoring.
· R32 VRF 8-12HP, expandable to 36HP for decarbonized buildings
· 41% less R32 refrigerant amount compared to the R410A equivalent system
· Extensive R32 range with nanoe™ X indoor units and seamless BMS connectivity
· R32 standard-compliant and safety measures available
·Single‑port heat recovery box available with or without safety valve kit
Minimum environmental impact
R32
GWP REDUCED BY
68%1)
Advanced R32 technology and optimised design make it a more sustainable alternative to R410A.
With lower GWP and superior efficiency, it ensures sustainability throughout its lifetime.
1) GWP of R32 refrigerant is 675, while the GWP of R410A is 2088.

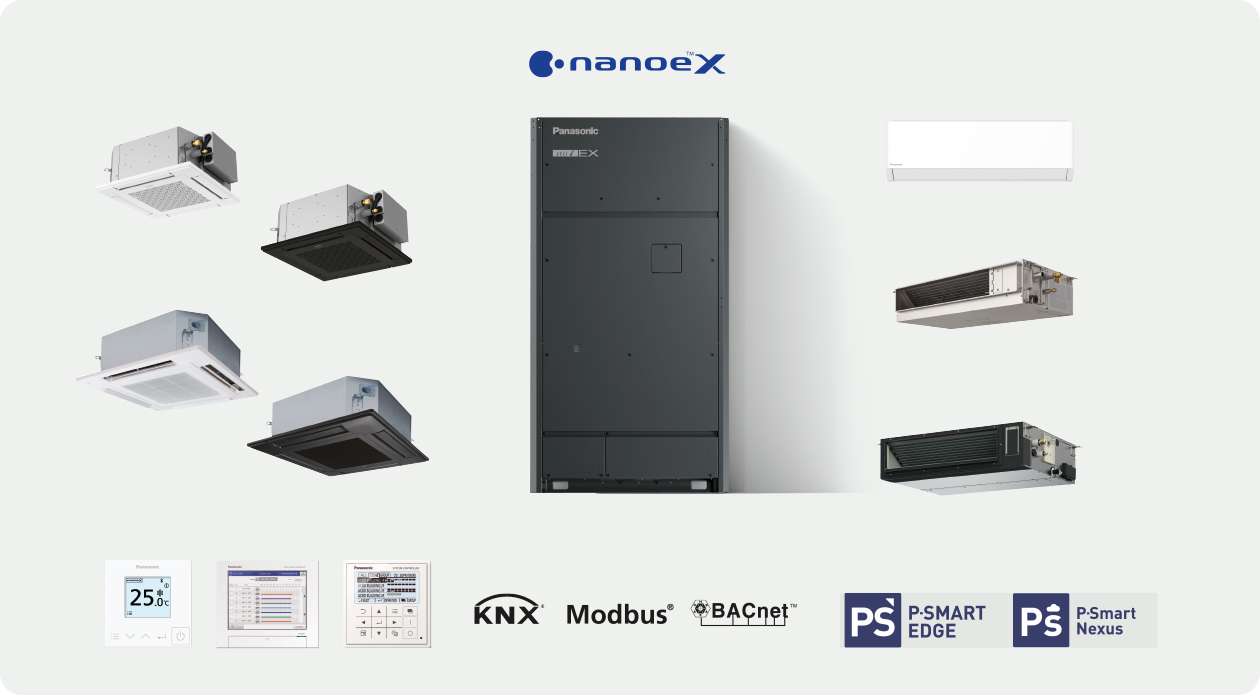

Extensive R32 VRF solution to meet any project requirements
· All air to air indoor units are equipped with nanoe™ X for improved indoor air quality
· A wide range of connectivity options, including stand-alone, central, and remote monitoring, with BMS integration for seamless operation
Compatible with a large range of indoor units
A wide range of air-to-air indoor units enhance indoor air quality with nanoe™ X, while Panasonic’s R32 safety measures ensure flexibility for various installations.

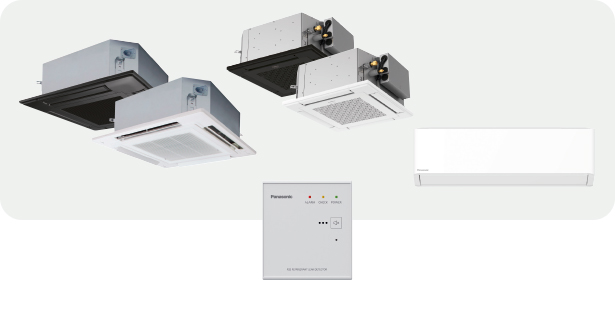

R32 leak detector - CZ-CGLSC2.

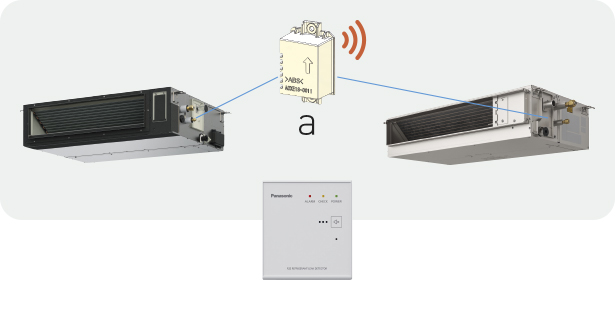

R32 leak alarm - CZ-CGLALC1.
a: Built-in R32 refrigerant leak detector.
Single-port heat recovery box with safety valve kit – CZ-P1160SVHR.
· Fully compliant with IEC 60335-2-40 Ed.7
· Ideal for areas requiring R32 safety measures
· Suitable for hotels rooms, small offices

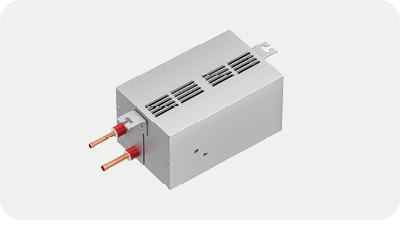

Single-port heat recovery box – CZ-P1160HR4.
· erfect for large spaces where no additional safely measures are required
· Cost-effectivesolution

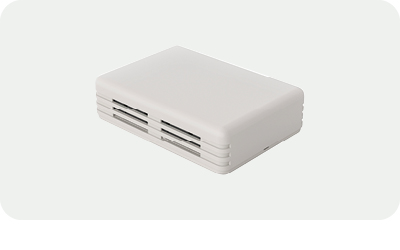

External power supply - PAW-16DC-ALC1.
External 16V power supply (EN 378 compliant), including a leak alarm for remote locations.
Bringing nature’s balance indoors
nanoe™ X, technology with the benefits of hydroxyl radicals
