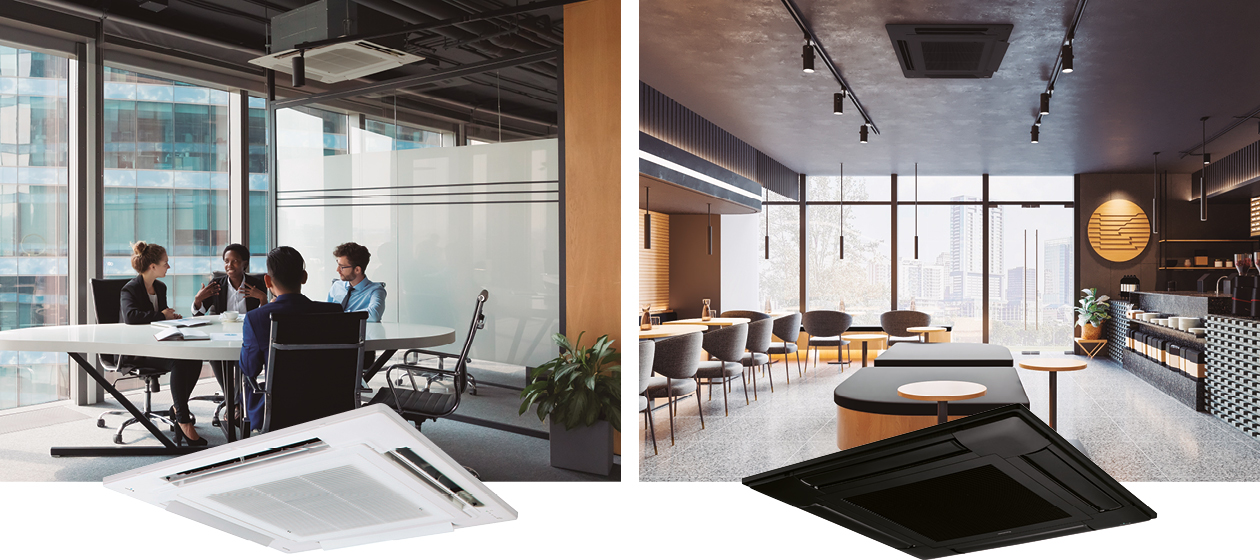

4-cestná kazeta 90x90 - PU3
Výkonný turbo ventilátor a inteligentný snímač Econavi zabezpečujú vysokú energetickú účinnosť a štandardne dodávaná technológia nanoe™ X poskytuje výnimočnú úroveň kvality vzduchu v interiéri.
- Vysoko výkonný turbo ventilátor, systém dráh pre výmenník tepla
- Econavi: voliteľný inteligentný snímač na zníženie plytvania energiou
- nanoe™ X (značka generátora 1 = 4,8 bilióna OH radikálov/s) ako štandard pre lepšiu kvalitu vnútorného vzduchu, vnútorné čistenie vnútornej jednotky pomocou nanoe™ X a suchú prevádzku
- Nižšia hlučnosť pri pomalej prevádzke ventilátora
- Nízka hmotnosť, jednoduchá inštalácia potrubia a integrované vypúšťacie čerpadlo na rýchlu inštaláciu
- Nové káblové diaľkové ovládanie CZ-RTC6WBL a CZ-RTC6BL umožňuje jednoduché nastavenie systému prostredníctvom Bluetooth®
- Prívod veľkého množstva čerstvého vzduchu s voliteľnou komorou na nasávanie vzduchu (CZ-FDU3+CZ-ATU2)
Špecifikácie
Pozri všetky
| PACi NX Series Elite 4-cestný kazetový menič 90x90+ - R32 | SINGLE PHASE | THREE PHASE | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3.6 kW | 5.0 kW | 6.0 kW | 7.1 kW | 10.0 kW | 12.5 kW | 14.0 kW | 7.1 kW | 10.0 kW | 12.5 kW | 14.0 kW | |||
| Input power heating (Min) | kW | 0,36 | 0,56 | 0,58 | 0,60 | 0,36 | 0,56 | 0,58 | 0,60 | ||||
| Panel net weight | kg | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
| Panel dimension (Depth) | mm | 950 | 950 | 950 | 950 | 950 | 950 | 950 | 950 | 950 | 950 | 950 | |
| Panel dimension (Height) | mm | 33,5 | 33,5 | 33,5 | 33,5 | 33,5 | 33,5 | 33,5 | 33,5 | 33,5 | 33,5 | 33,5 | |
| Outdoor air flow (Heat) | m³/min | 36,4 | 42,0 | 42,0 | 66,0 | 70,0 | 78,0 | 83,0 | 66,0 | 70,0 | 78,0 | 83,0 | |
| Outdoor air flow (Cool) | m³/min | 34,1 | 42,0 | 42,0 | 62,0 | 76,0 | 86,0 | 89,0 | 62,0 | 76,0 | 86,0 | 89,0 | |
| nanoe X Generator | Mark 1 | Mark 1 | Mark 1 | Mark 1 | Mark 1 | Mark 1 | Mark 1 | Mark 1 | Mark 1 | Mark 1 | Mark 1 | ||
| Moisture removal volume | L/h | 0,7 | 1,6 | 1,7 | 2,5 | 1,9 | 4,8 | 4,9 | 2,5 | 1,9 | 4,8 | 4,9 | |
| Input power heating (Max) | kW | 2,85 | 3,85 | 4,75 | 5,50 | 2,85 | 3,85 | 4,75 | 5,50 | ||||
| Indoor sound pressure (Med) (4) | dB(A) | 28 | 29 | 31 | 31 | 38 | 39 | 40 | 31 | 38 | 39 | 40 | |
| COP (Max) (1) | W/W | 5,56 | 5,54 | 5,52 | 5,50 | 5,56 | 5,54 | 5,52 | 5,50 | ||||
| COP (Min) (1) | W/W | 3,16 | 3,64 | 3,37 | 3,27 | 3,16 | 3,64 | 3,37 | 3,27 | ||||
| Heating capacity (Max) | kW | 5,0 | 6,5 | 8,0 | 9,0 | 14,0 | 16,0 | 18,0 | 9,0 | 14,0 | 16,0 | 18,0 | |
| Heating capacity (Min) | kW | 1,2 | 1,2 | 1,2 | 2,0 | 3,1 | 3,2 | 3,3 | 2,0 | 3,1 | 3,2 | 3,3 | |
| Annual energy consumption cooling (3) | kWh/a | 142 | 203 | 263 | 323 | 426 | — | — | 323 | 426 | — | — | |
| Input power cooling (Max) | kW | 3,35 | 3,65 | 4,55 | 5,85 | 3,35 | 3,65 | 4,55 | 5,85 | ||||
| Input power cooling (Min) | kW | 0,38 | 0,58 | 0,60 | 0,62 | 0,38 | 0,58 | 0,60 | 0,62 | ||||
| Input power cooling (Nominal) | kW | 0,66 | 1,16 | 1,48 | 1,75 | 2,15 | 3,29 | 3,72 | 1,75 | 2,15 | 3,29 | 3,72 | |
| Pdesign (cooling) | kW | 3,6 | 5,0 | 6,0 | 7,1 | 9,5 | 12,5 | 13,4 | 7,1 | 9,5 | 12,5 | 13,4 | |
| Current in heating (1p 220V / 3p 380) | A | 3,60 | 6,25 | 8,05 | 9,40 | 10,90 | 14,90 | 18,20 | 3,15 | 3,75 | 5,10 | 6,20 | |
| SCOP/ηs,h (2) | % | 5,1 A+++ | 4,9 A++ | 4,8 A++ | 4,8 A++ | 4,9 A++ | 186,0% | 181,2% | 4,8 A++ | 4,9 A++ | 186,0% | 181,1% | |
| SEER/ηs,c (2) | % | 8,9 A+++ | 8,6 A+++ | 8,0 A++ | 7,7 A++ | 7,8 A++ | 304,3% | 286,6% | 7,7 A++ | 7,2 A++ | 303,0% | 286,6% | |
| Elevation difference (in/out) (7) | m | 15 / 30 (8) | 15 / 30 (8) | 15 / 30 (8) | 15 / 30 | 15 / 30 | 15 / 30 | 15 / 30 | 15 / 30 | 15 / 30 | 15 / 30 | 15 / 30 | |
| Indoor air flow (Lo) | m³/min | 11,5 | 11,5 | 13,0 | 13,0 | 18,0 | 19,0 | 20,0 | 13,0 | 18,0 | 19,0 | 20,0 | |
| Indoor air flow (Med) | m³/min | 13,0 | 13,5 | 16,0 | 16,0 | 26,0 | 27,0 | 29,0 | 16,0 | 26,0 | 27,0 | 29,0 | |
| Indoor air flow (Hi) | m³/min | 14,5 | 16,5 | 21,0 | 22,0 | 36,0 | 37,0 | 38,0 | 22,0 | 36,0 | 37,0 | 38,0 | |
| Indoor sound power (Lo) | dB(A) | 42 | 42 | 43 | 43 | 47 | 48 | 49 | 43 | 47 | 48 | 49 | |
| Indoor sound power (Med) | dB(A) | 43 | 44 | 46 | 46 | 53 | 54 | 55 | 46 | 53 | 54 | 55 | |
| Current in heating (1p 240V / 3p 415) | A | 3,30 | 5,75 | 7,40 | 8,60 | 10,10 | 13,60 | 16,70 | 2,90 | 3,40 | 4,65 | 5,65 | |
| Current in heating (1p 230V / 3p 400) | A | 3,45 | 6,00 | 7,70 | 9,00 | 10,60 | 14,20 | 17,40 | 3,00 | 3,55 | 4,80 | 5,90 | |
| EER (Max) (1) | W/W | 5,79 | 5,34 | 5,33 | 5,32 | 5,79 | 5,34 | 5,33 | 5,32 | ||||
| Current in cooling (1p 240V / 3p 415) | A | 3,00 | 5,05 | 6,35 | 8,10 | 9,75 | 14,70 | 16,70 | 2,70 | 3,25 | 5,00 | 5,65 | |
| Current in cooling (1p 230V / 3p 400) | A | 3,10 | 5,25 | 6,65 | 8,45 | 10,02 | 15,40 | 17,40 | 2,80 | 3,40 | 5,15 | 5,85 | |
| Current in cooling (1p 220V / 3p 380) | A | 3,25 | 5,50 | 6,95 | 8,85 | 10,06 | 16,10 | 18,20 | 2,95 | 3,60 | 5,45 | 6,15 | |
| Remote controller | CZ-RTC5B | CZ-RTC5B | CZ-RTC5B | CZ-RTC5B | CZ-RTC5B | CZ-RTC5B | CZ-RTC5B | CZ-RTC5B | CZ-RTC5B | CZ-RTC5B | CZ-RTC5B | ||
| Outdoor sound power (Heat -Hi) | dB(A) | 64 | 67 | 69 | 67 | 69 | 73 | 74 | 67 | 69 | 73 | 74 | |
| Outdoor sound power (Cool -Hi) | dB(A) | 62 | 64 | 65 | 65 | 69 | 73 | 74 | 65 | 69 | 73 | 74 | |
| Outdoor sound pressure (Heat - Hi) | dB(A) | 44 | 48 | 50 | 50 | 52 | 55 | 56 | 50 | 52 | 55 | 56 | |
| Outdoor sound pressure (Cool - Hi) | dB(A) | 43 | 46 | 47 | 48 | 52 | 55 | 56 | 48 | 52 | 55 | 56 | |
| Indoor sound pressure (Lo) (4) | dB(A) | 27 | 27 | 28 | 28 | 32 | 33 | 34 | 28 | 32 | 33 | 34 | |
| Indoor net weight | kg | 19 | 19 | 20 | 20 | 25 | 25 | 25 | 20 | 25 | 25 | 25 | |
| COP (Nominal) (1) | W/W | 5,41 | 4,24 | 4,02 | 4,30 | 5,00 | 4,61 | 4,30 | 4,30 | 5,00 | 4,61 | 4,30 | |
| Outdoor power source | V | 220 - 230 - 240 | 220 - 230 - 240 | 220 - 230 - 240 | 220 - 230 - 240 | 220 - 230 - 240 | 220 - 230 - 240 | 220 - 230 - 240 | 380 - 400 - 415 | 380 - 400 - 415 | 380 - 400 - 415 | 380 - 400 - 415 | |
| Heating capacity (Nominal) | kW | 4,0 | 5,6 | 7,0 | 8,0 | 11,2 | 14,0 | 16,0 | 8,0 | 11,2 | 14,0 | 16,0 | |
| Cooling capacity (Nominal) | kW | 3,6 | 5,0 | 6,0 | 7,1 | 9,5 | 12,5 | 13,4 | 7,1 | 9,5 | 12,5 | 13,4 | |
| Operating range (Cool - Min) | °C | -15 | -15 | -15 | -15 | -20 (8) | -20 (8) | -20 (8) | -15 | -20 (8) | -20 (8) | -20 (8) | |
| Input power heating (Nominal) | kW | 0,74 | 1,32 | 1,74 | 1,86 | 2,24 | 3,04 | 3,72 | 1,86 | 2,24 | 3,04 | 3,72 | |
| Pdesign at -10°C | kW | 3,6 | 4,5 | 4,7 | 5,2 | 8,0 | 9,5 | 10,6 | 5,2 | 8,0 | 9,5 | 10,6 | |
| Annual energy consumption heating (3) | kWh/a | 988 | 1.286 | 1.371 | 1.517 | 2.286 | — | — | 1.517 | 2.286 | — | — | |
| Outdoor net weight | kg | 42 | 42 | 43 | 66 | 84 | 86 | 86 | 66 | 82 | 84 | 84 | |
| Outdoor dimension (Height) | mm | 695 | 695 | 695 | 996 | 996 | 996 | 996 | 996 | 996 | 996 | 996 | |
| EER (Nominal) (1) | W/W | 5,45 | 4,31 | 4,05 | 4,06 | 4,42 | 3,80 | 3,60 | 4,06 | 4,42 | 3,80 | 3,60 | |
| Indoor dimension (Height) | mm | 256 | 256 | 256 | 256 | 319 | 319 | 319 | 256 | 319 | 319 | 319 | |
| Pipe length range | m | 3 ~ 40 | 3 ~ 40 | 3 ~ 40 | 5 ~ 60 | 5 ~ 100 | 5 ~ 100 | 5 ~ 100 | 5 ~ 60 | 5 ~ 100 | 5 ~ 100 | 5 ~ 100 | |
| Additional gas amount | g/m | 15 | 15 | 15 | 30 | 40 | 40 | 40 | 30 | 40 | 40 | 40 | |
| EER (Min) (1) | W/W | 2,69 | 3,42 | 3,08 | 2,74 | 2,69 | 3,42 | 3,08 | 2,74 | ||||
| Cooling capacity (Max) | kW | 4,0 | 5,6 | 7,1 | 9,0 | 12,5 | 14,0 | 16,0 | 9,0 | 12,5 | 14,0 | 16,0 | |
| Cooling capacity (Min) | kW | 1,2 | 1,2 | 1,2 | 2,2 | 3,1 | 3,2 | 3,3 | 2,2 | 3,1 | 3,2 | 3,3 | |
| Operating range (Heat - Max) | °C | +24 | +24 | +24 | +24 | +24 | +24 | +24 | +24 | +24 | +24 | +24 | |
| Operating range (Heat - Min) | °C | -20 | -20 | -20 | -20 | -20 | -20 | -20 | -20 | -20 | -20 | -20 | |
| Operating range (Cool - Max) | °C | +46 | +46 | +46 | +52 | +52 | +52 | +52 | +52 | +52 | +52 | +52 | |
| Outdoor unit | U-36PZH3E5 | U-50PZH3E5 | U-60PZH3E5 | U-71PZH4E5 | U-100PZH4E5 | U-125PZH4E5 | U-140PZH4E5 | U-71PZH4E8 | U-100PZH4E8 | U-125PZH4E8 | U-140PZH4E8 | ||
| Indoor unit | S-3650PU3E | S-3650PU3E | S-6071PU3E | S-6071PU3E | S-1014PU3E | S-1014PU3E | S-1014PU3E | S-6071PU3E | S-1014PU3E | S-1014PU3E | S-1014PU3E | ||
| Kit | KIT-36PU3ZH5 | KIT-50PU3ZH5 | KIT-60PU3ZH5 | KIT-71PU3ZH45 | KIT-100PU3ZH45 | KIT-125PU3ZH45 | KIT-140PU3ZH45 | KIT-71PU3ZH48 | KIT-100PU3ZH48 | KIT-125PU3ZH48 | KIT-140PU3ZH48 | ||
| Pre-charged pipe length | m | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Piping diameter (Gas) | Inch (mm) | 1/2 (12,70) | 1/2 (12,70) | 1/2 (12,70) (6) | 5/8 (15,88) | 5/8 (15,88) | 5/8 (15,88) | 5/8 (15,88) | 5/8 (15,88) | 5/8 (15,88) | 5/8 (15,88) | 5/8 (15,88) | |
| Piping diameter (Liquid) | Inch (mm) | 1/4 (6,35) | 1/4 (6,35) | 1/4 (6,35) (5) | 3/8 (9,52) | 3/8 (9,52) | 3/8 (9,52) | 3/8 (9,52) | 3/8 (9,52) | 3/8 (9,52) | 3/8 (9,52) | 3/8 (9,52) | |
| Outdoor dimension (Depth) | mm | 320 | 320 | 320 | 370 | 370 | 370 | 370 | 370 | 370 | 370 | 370 | |
| Outdoor dimension (Width) | mm | 875 | 875 | 875 | 980 | 980 | 980 | 980 | 980 | 980 | 980 | 980 | |
| Indoor dimension (Depth) | mm | 840 | 840 | 840 | 840 | 840 | 840 | 840 | 840 | 840 | 840 | 840 | |
| Indoor dimension (Width) | mm | 840 | 840 | 840 | 840 | 840 | 840 | 840 | 840 | 840 | 840 | 840 | |
| Refrigerant (R32) / CO2 Eq. | kg / T | 1,13 / 0,76 | 1,13 / 0,76 | 1,15 / 0,78 | 1,95 / 1,32 | 2,70 / 1,82 | 3,00 / 2,03 | 3,00 / 2,03 | 1,95 / 1,32 | 2,70 / 1,82 | 3,00 / 2,03 | 3,00 / 2,03 | |
| Indoor sound power (Hi) | dB(A) | 45 | 47 | 51 | 52 | 60 | 61 | 62 | 52 | 60 | 61 | 62 | |
1) Výpočet EER a COP je založený na norme EN14511.
2) Pri modeloch s výkonom nižším ako 12 kW sa SEER a SCOP vypočítavajú na základe hodnôt EÚ/626/2011. Pre modely nad 12 kW sa hodnoty ηs,c / ηs,h vypočítavajú na základe normy EN 14825.
3) Nastavenie z výroby.
4) Akustický tlak jednotiek zobrazuje hodnotu nameranú z polohy 1,5 m pod jednotkou. Akustický tlak sa meria v súlade so špecifikáciou Eurovent 6/C/006-97.
5) Pripojte rúrku kvapalinovej zásuvky (Ø6,35-Ø9,52) k vnútornej jednotke na strane kvapalinovej trubice.
6) Pripojte rúrku plynovej zásuvky (Ø12,70-Ø15,88) k vnútornej jednotke na strane plynovej trubice.
7) Vonkajšia jednotka umiestnená nižšie / vonkajšia jednotka umiestnená vyššie.
8) Dĺžka potrubia do 30 m.
* Odporúčaná poistka pre vnútornú jednotku 3A.
** Vyššie uvedené hodnoty sú v prípade nanoe™ X OFF.
