Introducing the new Aquarea High Performance M Series from 3kW to 9kW
Compact, 100% hydronic heat pump combining high performance and installation flexibility.
Available in 3, 5, 7 and 9kW capacities.
Compact High Performance for new build and
retrofit projects
Hydronic R290 solution
R290 refrigerant with a GWP of just 0,02.
Hydronic pipework connection only.
High performance
SCOP of A+++. Water outlet temperature maximum 75°C.
* Scale A+++ to D.
New compact All in One indoor unit
Designed to make installation and servicing easier.
New build and retrofit ready
Wide variety of indoor units available with multiple applications.
Quiet operation
Sound pressure levels from only 26dB(A) at 5m.*
*Prototype test measured sound pressure level value of the
5kW model.
Reliable operation
Maintains operation down to -28°C*. Powered by Panasonic compressor technology.
* For 5, 7 and 9kW models.
Only hydronic pipework inside the home, with the R290 refrigerant sealed within the outdoor unit

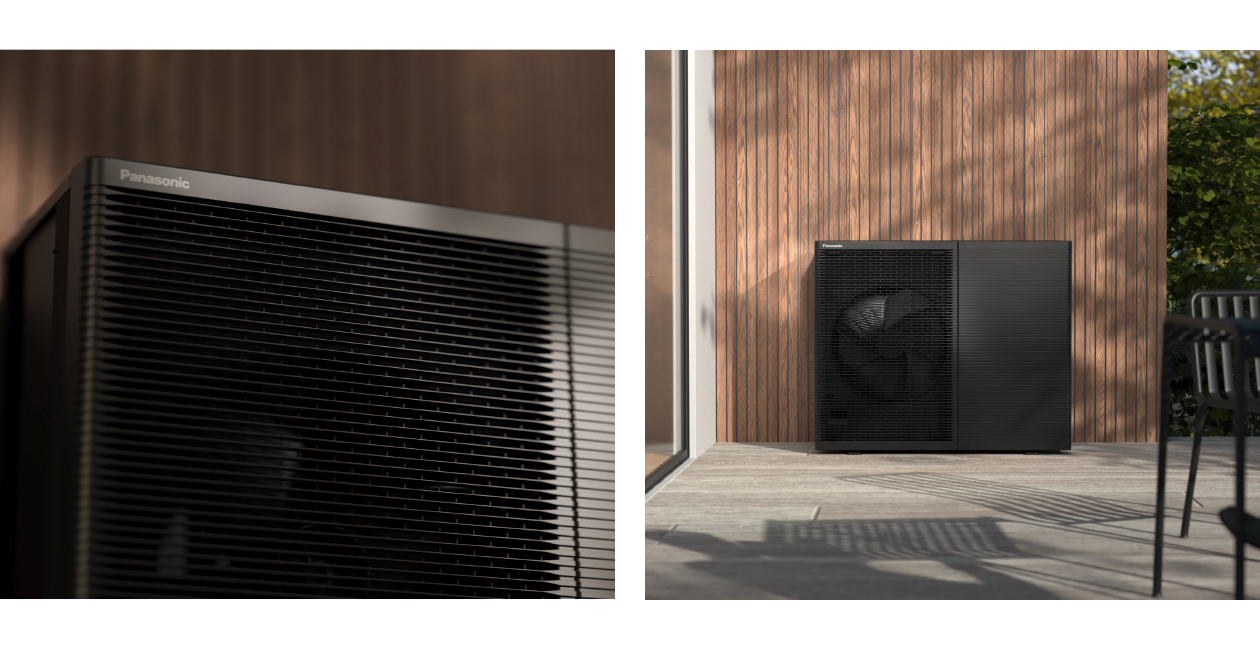

The new design blends seamlessly into the user’s surroundings.
Quiet operation powered by Panasonic technology

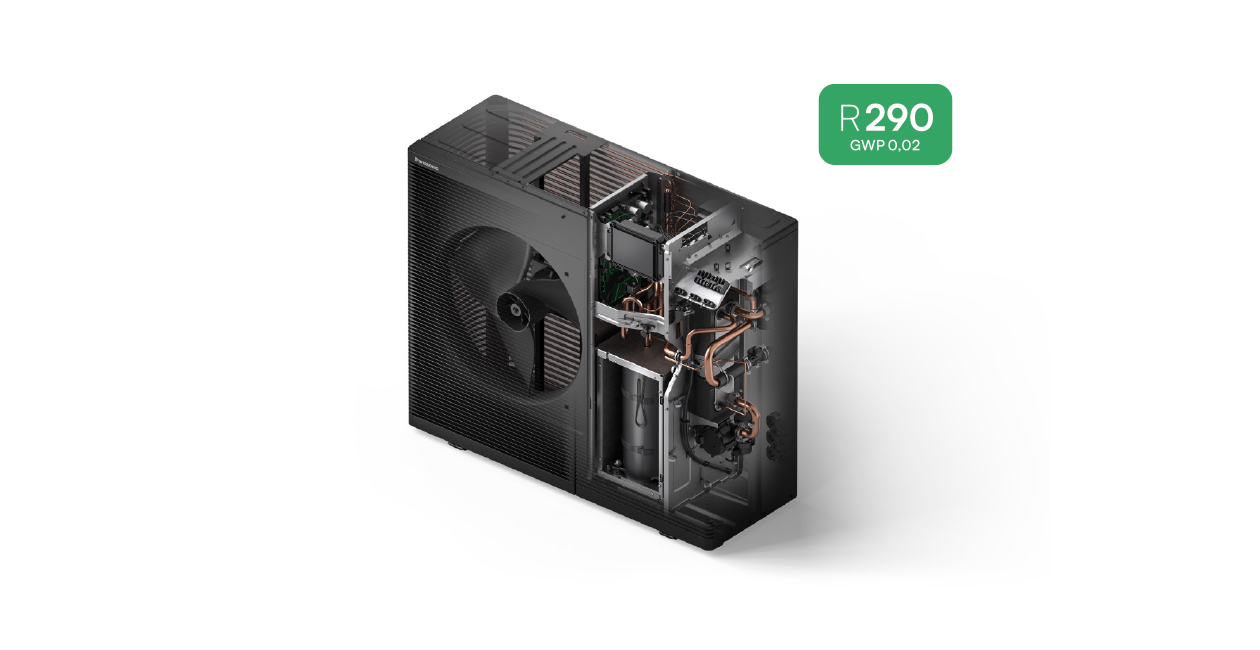

Featuring a Panasonic in-house developed R290 scroll compressor, the M Series delivers sound pressure levels from only 26dB(A) at 5m*.
*Prototype test measured sound pressure level value of the 5kW model. ErP sound power level: 50dB(A).

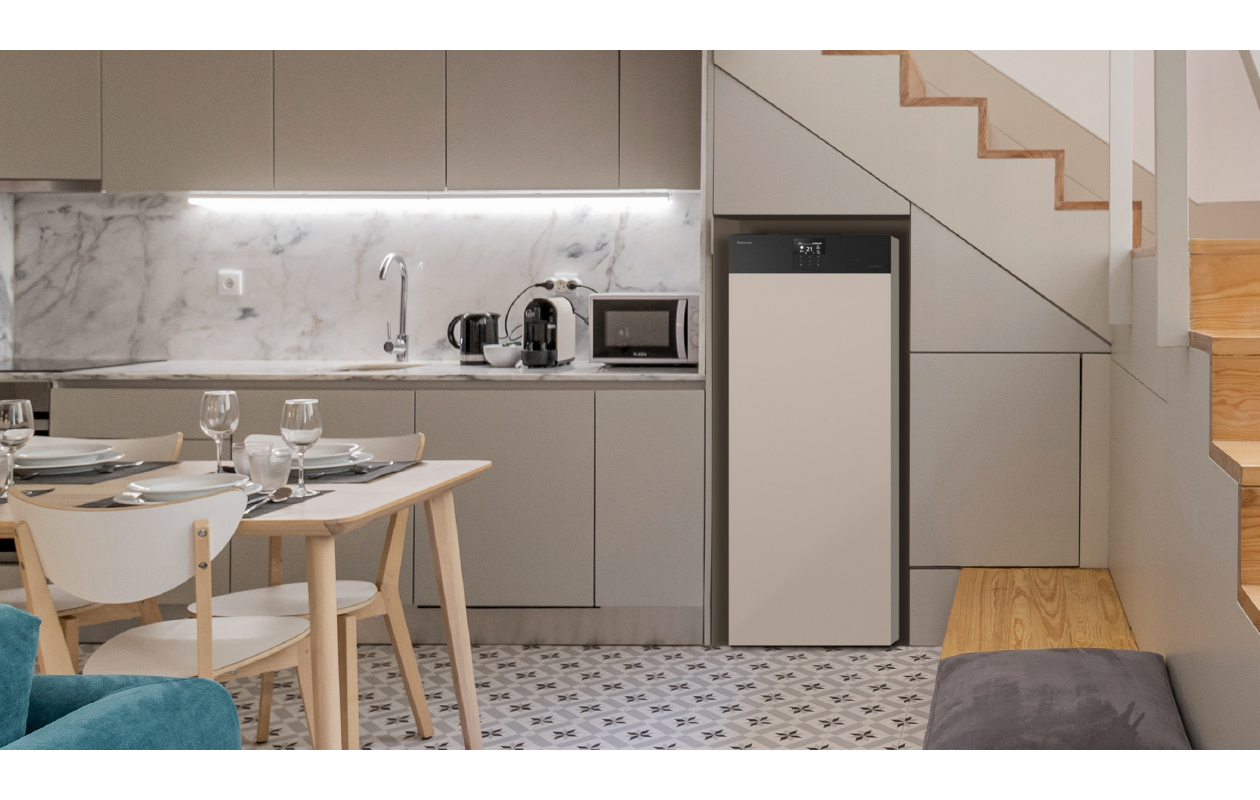

New All in One: More compact. Easier to install
The compact footprint and reduced height help maximise installation possibilities while maintaining an integrated appearance within the home.
Designed for easier installation and servicing.
· Compact design with reduced height
· Easy positioning and levelling
· Space-efficient rear drainpipe routing
· Top access wiring with integrated cable duct
· Easier PCB access with fewer screws

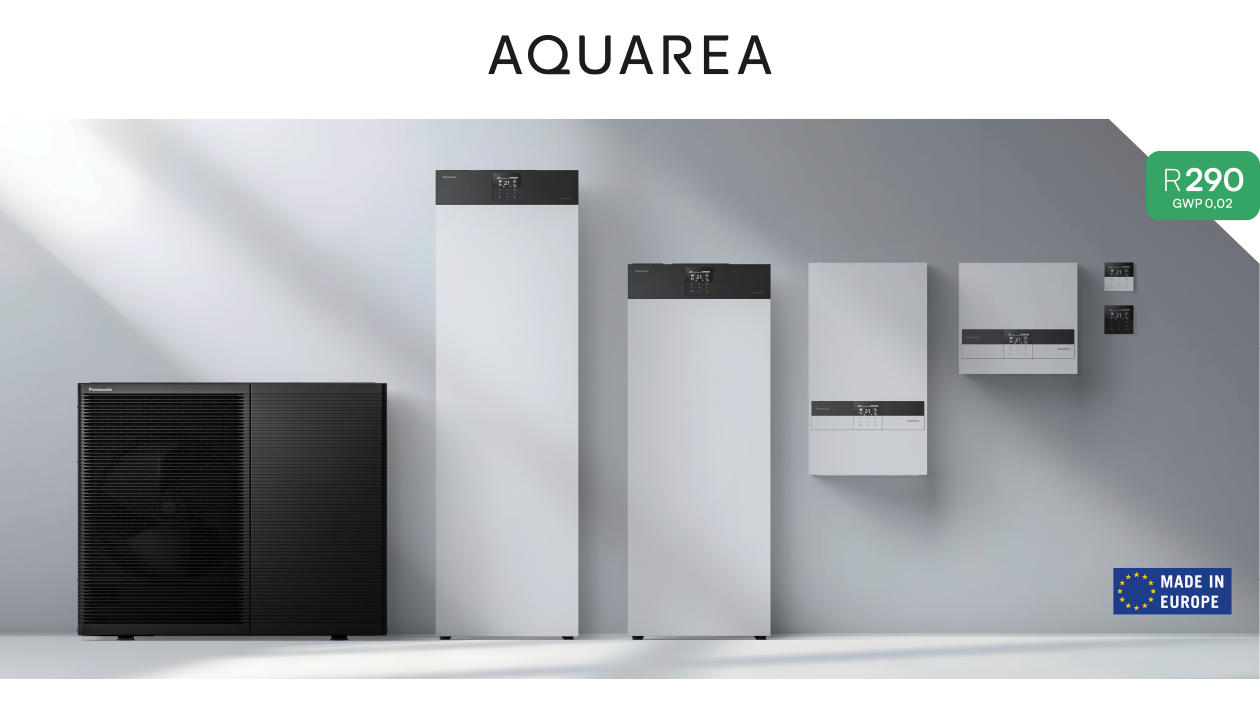

Flexible solutions for a wide range of applications
Available in All in One, Bi-bloc, control module and remote controller configurations, the Aquarea M Series supports both new build and retrofit projects. Water flow temperatures up to 75°C and reliable operation down to -28°C* help meet a wide range of residential heating requirements.
* For WH-WDG05ME5, WH-WDG07ME5 and WH-WDG09ME5. Other models operate down to -25 ºC.

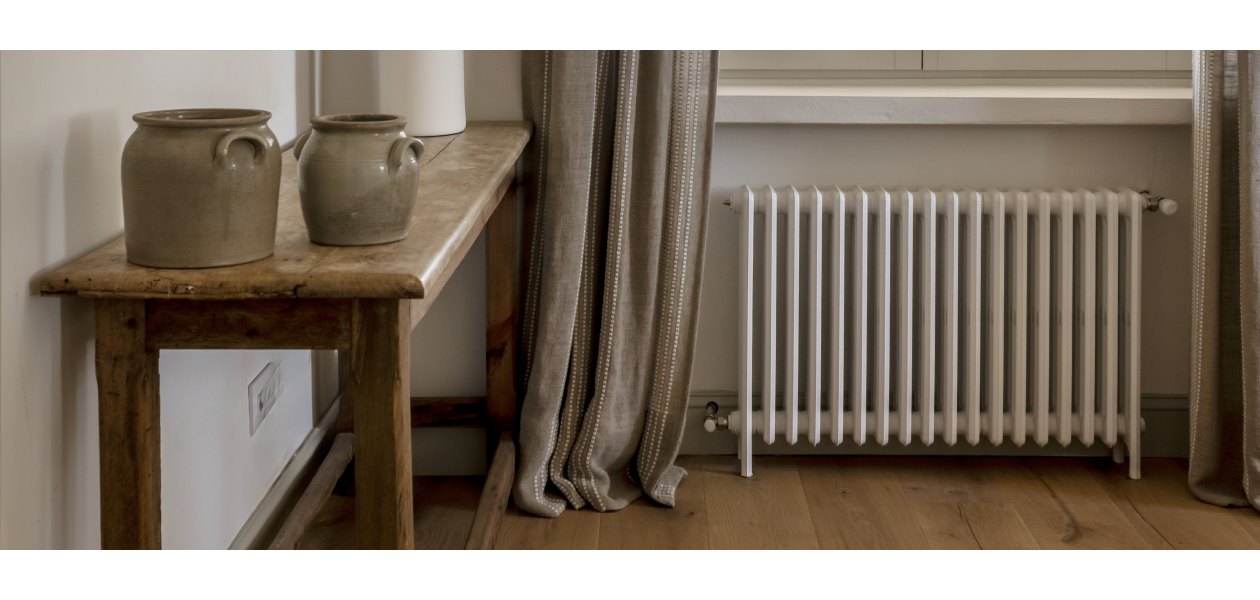

Designed for both renovation projects and new homes. It integrates easily with existing heating systems, including radiators, underfloor heating, and fan coils.

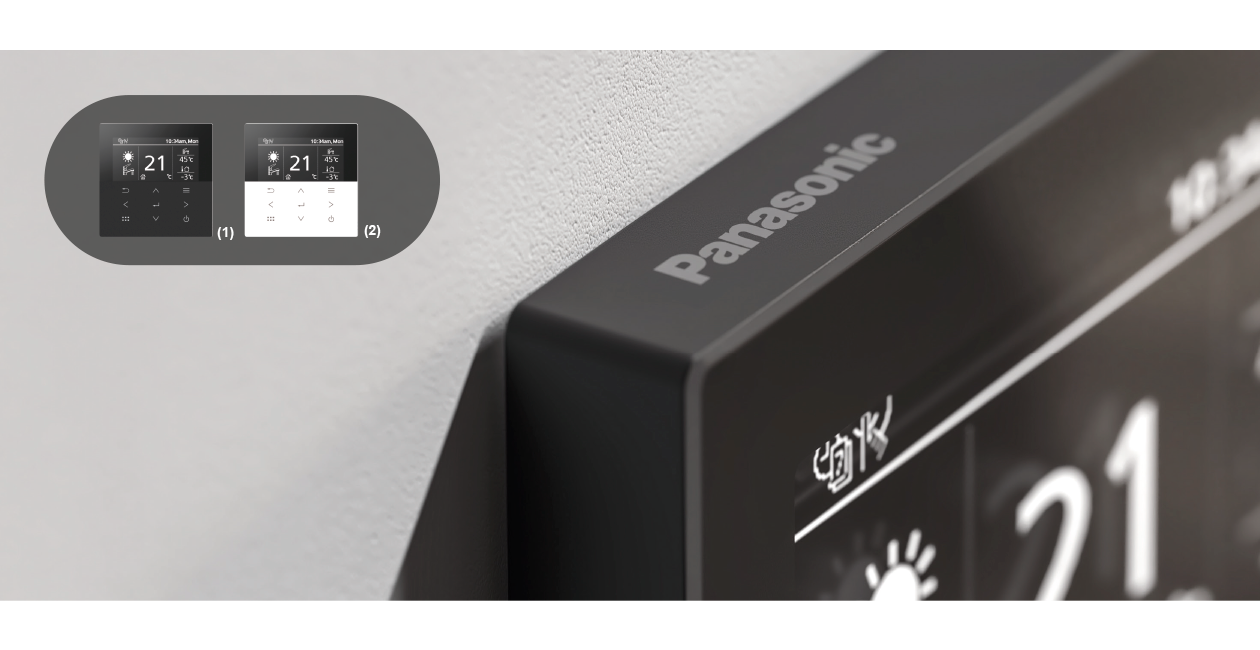

New Aquarea remote controller
Smart control and remote maintenance.
Designed in harmony with the whole system, with optimised user interface and advanced control features.
(1) For All in One and remote controller. (2) For Bi-bloc.
Smart bivalency
Cost effective bivalent mode with
power tariff logic.
Dual control system
For independent control of two zones,
within the home.
Optimised user interface
Including water pressure reading on the home screen for convenience.

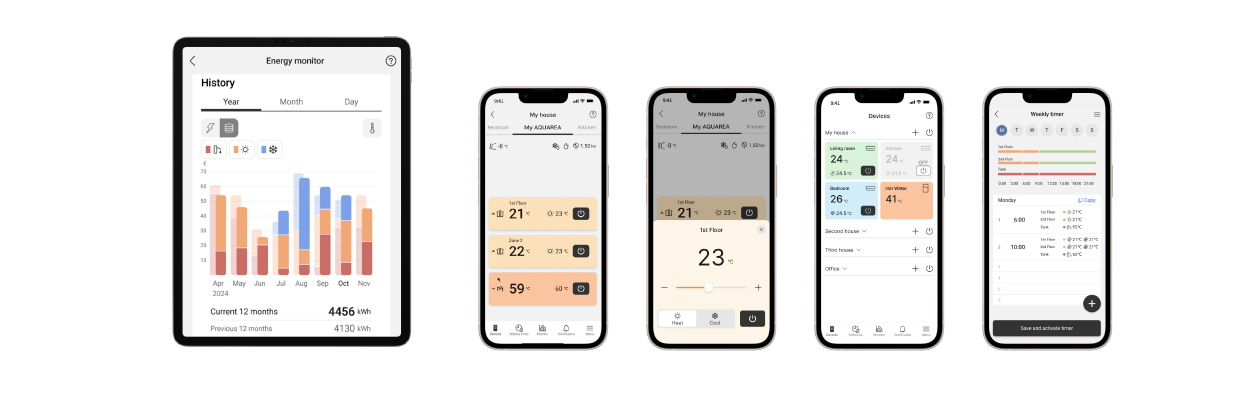

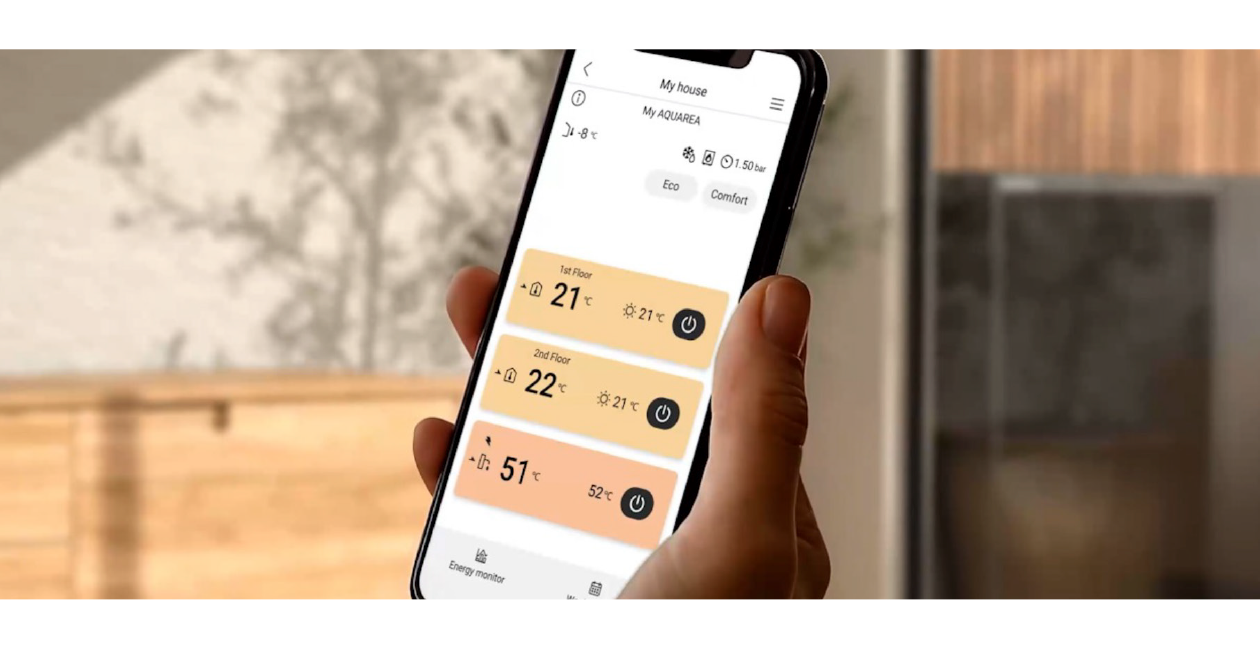

Panasonic Comfort Cloud App
Easy and powerful energy management with convenient remote control via IoT.
The Panasonic Comfort Cloud App is much more than a simple controller for switching a heating device ON or OFF. It is a powerful and intuitive service for remotely controlling the full range of heating and hot water functions, including monitoring energy consumption.
Manage Panasonic heat pumps anytime, anywhere.
Advantages:
· Effortless multi-heat pump control
· Enables remote maintenance via Aquarea Service Cloud
· Allows professionals to engage in predictive maintenance and system fine-tuning and respond rapidly to any malfunctions
Functions:
· Weekly Scheduling
· Malfunction notifications
· Display and control
· Energy statistics monitoring
Note: User interface is subject to change without notice.
Aquarea Service Cloud for installers / maintenance
Remote maintenance made simple.
The Aquarea Service Cloud allows installers to take care of their customers’ heating systems remotely. It saves time and money and shortens the response time, thus increasing the customers’ satisfaction. There are three versions to optimise system performance and reduce downtime.
Diagnosis version
For predictive maintenance.
Advanced version
For preventive and corrective maintenance.
Standard version
Remote maintenance made simple.

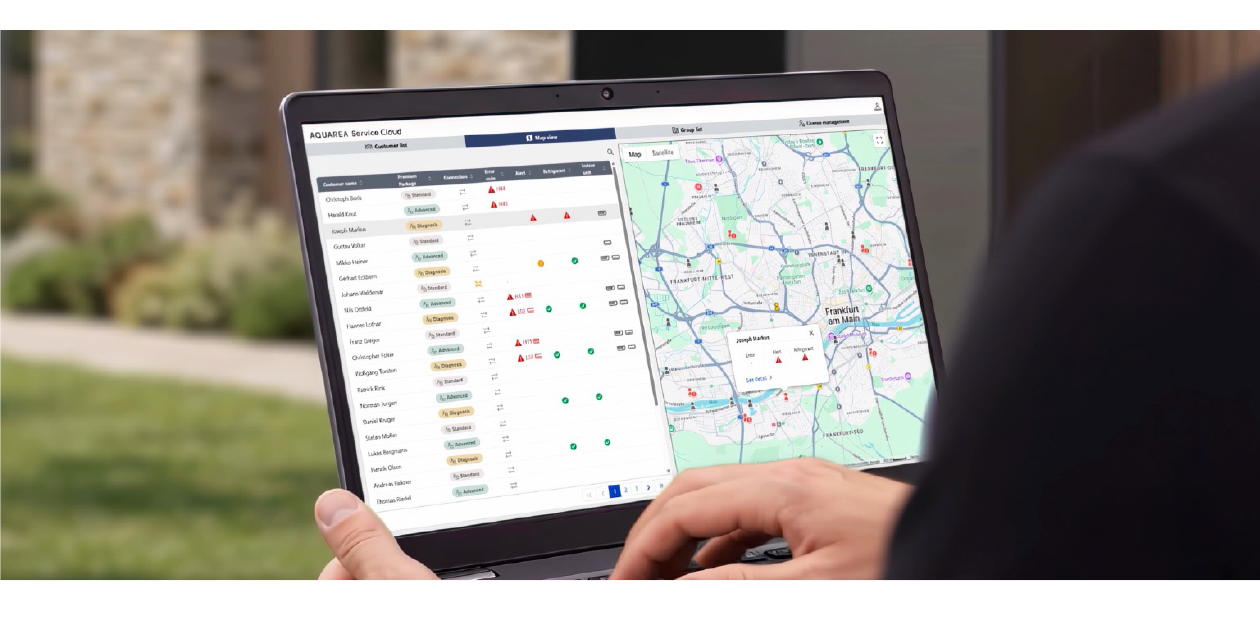

Home page
Status of connected users at a glance. 2 view options: map view or list view
Unit status
Current status of unit with a maximum 28 parameters.
Unit statistics
Customisable statistics for up to 71 parameters. Available anytime with the information of the last 7 days.
Unit settings
Most user and installer settings can be adjusted remotely.
